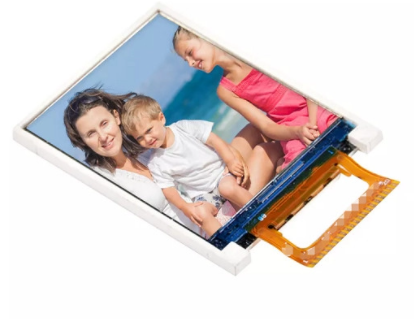

128×128 Panel TFT LCD Screen, Transmissive 1.44 Inch TFT LCD Display
Product Overview
High-quality 1.44-inch TFT LCD display with 128×128 resolution, designed for various industrial and consumer applications.
Key Specifications
| Parameter | Value |
| LCD Type | TFT LCD Display |
| Storage Temperature | 0~50, -10~60, -20~+70℃, -30~80 |
| Voltage | 2.8~5.0 V |
| Connector | FPC |
| Driving Method | Static/Dynamic |
| Polarizer Type | Transflective/Transmissive/Reflective |
Detailed Specifications
| Item | Content | Description |
| 1 | LCD Type | 1.44 Inch TFT LCD |
| 2 | Outline Size | 29×35mm |
| 3 | VA Size | 25.5×26.5mm |
| 4 | Viewing Direction | 6 O'clock or 12 O'clock |
| 5 | Voltage | 2.8V,3.0V,3.2V,3.6V,4.0V,4.5V,5.0V |
| 6 | Display Mode | Positive or Negative |
| 7 | IC | ST7735S |
| 8 | Operation Temp | 0°C to +50°C, -10°C to +60°C, -20°C to +70°C |
| 9 | Storage Temp | -10°C to +60°C, -20°C to +70°C, -30°C to +80°C, -35°C to +90°C |
| 10 | Contactor | SPI-4WIRE |
Technical Parameters
Size: Diagonal size is 1.44 inches, with effective display area of approximately 25.5mm × 26.5mm.
Resolution: 128×128 pixels with RGB vertical stripe pixel arrangement.
Display Mode: Transmissive type with standard white mode when inactive.
Color Performance: Supports 262K color display for rich image effects.
Viewing Angle: 6:00 angle standard, with some models offering 80° viewing angles (left/right/upper/down).
Brightness: Ranges from 200cd/m² to 500cd/m² depending on model.
Interface and Driver
Interface Type: Supports MCU and SPI interfaces for microcontroller connectivity.
Driver Chip: ST7735S with high integration for advanced display functions.
Environmental Specifications
Operating Temperature: -20°C to 70°C for most conventional environments.
Storage Temperature: -30°C to 80°C for reliable storage conditions.
Applications
- Smart Wearables: Children's smart watches, fitness trackers for time, steps, and heart rate display
- Industrial Control: Small display interface for machine status and parameter settings
- Consumer Electronics: Portable audio players, electronic dictionaries for information display
