SPI Interface LCD TFT Display 1.47 Inch With 200 Cd/M² Brightness 262K Colors

  • 1
  • 2

Place of Origin : China

Brand Name : BBI

Certification : ISO9001 RoHS

MOQ : 1000

Price : DISCUSSABLE

Packaging Details : CARTON

Delivery Time : 3-4WEEKS

Payment Terms : T/T

Supply Ability : 100000/MONTH

Colors : 262K

Outline Size : 19.65(H)*36.76(V)*1.6(D)mm

Backlight Type : LED

Lcd Type : IPS

Screen Size : 1.47inches

Touchscreen : customized

Brightness : 200 cd/m²

Display Mode : Normally White,Transmissive

Contact Now

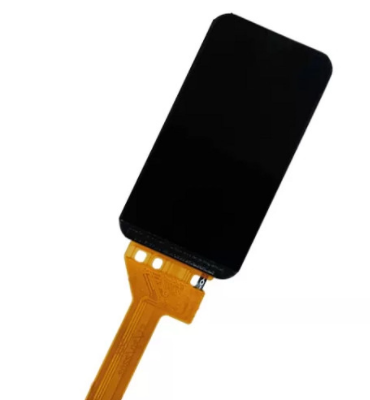

1.47" SPI TFT LCD Display Module - Small Size 172x320 TFT LCD
SPI Interface LCD TFT Display 1.47 Inch With 200 Cd/M² Brightness 262K Colors SPI Interface LCD TFT Display 1.47 Inch With 200 Cd/M² Brightness 262K Colors
Technical Specifications
Resolution 172 × 320 pixels
Size 1.47 Inch
Viewing Direction RGB
TFT Mode TFT, Transmissive
Outline Size 19.65(H) × 36.76(V) × 1.6(D) mm
Brightness 200 Nits
Display Mode Normally White, Transmissive
Interface Type SPI/MCU / 80-System 8 Bits Parallel Bus
Controller/Driver ST7789V3
Key Features
  • High-quality TFT display with 262K colors for vivid image reproduction
  • Fast response time (20-30ms) for smooth dynamic scenes
  • Low power consumption ideal for portable devices
  • Wide operating temperature range (-20℃ to 70℃)
  • IPS viewing angle for minimal distortion
  • Compact size (1.47") perfect for space-constrained applications
Performance Parameters
Screen size: 1.47 inches diagonal, ideal for compact devices.
Resolution: 172×320 pixels provides sharp image and text display.
SPI interface enables high-speed data transmission with simple integration.
ST7789V3 driver chip ensures stable operation with multiple display modes.
Brightness: 300-500 CD/M² with 1000:1 contrast ratio for excellent visibility.
Wide viewing angle maintains image quality from different perspectives.
Applications
  • Smartwatches for time and fitness data display
  • Handheld game consoles with smooth graphics
  • Industrial control systems for equipment monitoring
  • Smart home devices like locks and cameras
  • Medical equipment including portable monitors
